Why PhantomLink?

PhantomLink is an essential part of the Nanoleq solution to link stretchable cables to textile electrodes. It can also be used to connect to other sensors, buttons or PCBs. The patch can be applied by hot pressing or simply by ironing.

The PhantomLink connector solution is compatible with any analog and digital signals in e-textiles. Be it for ECG, EMG, EEG or for electrostimulation, PhantomLink provides a reliable and washable connection.

‍

The interface between stretchable and rigid electronics has always been the weakest point. Not anymore – thanks to PhantomLink.

PhantomLink

Highly Conductive

Corrosion Resistant

Easy Application

Mechinal Stress Resistant

Download Brochure

Request a quote

The range

ElectroSkin GECKO is our flagship electrode and comes with a skin-adhesive surface - this causes the electrode to be naturally attracted to the skin, which prevents unwanted electrode lift-off and allows for excellent signal quality without making the garment overtiight.

Without the skin-adhesion comes ElectroSkin Sense - it has all the features needed for comfortable and accurate signal monitoring.

The skin contact surface and elastic modulus of ElectroSkin Stim is optimal for comfortable electrostimulation in long lasting e-textiles.

ElectroSkin Gecko

for performance biosignal monitoring, including ECG, EEG, and EMG.

Get a quote

ElectroSkin Sense

for biosignal monitoring, including ECG, EEG, and EMG.
‍

Get a quote

ElectroSkin Stim

for optimized and safe electrical stimulation.
‍

Get a quote

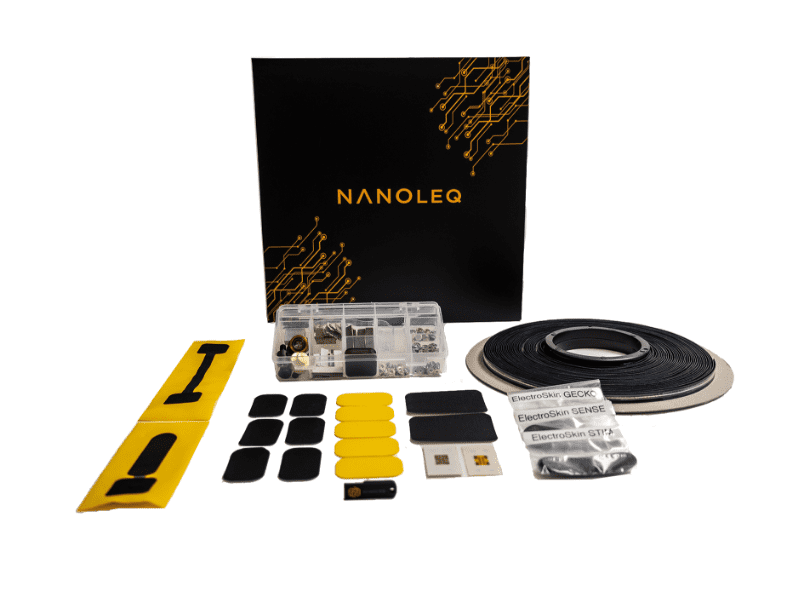

Combined Starter Kit

The PhantomTape & ElectroSkin Combined Starter Kit is the best way to learn how to make washable and industry-ready e-textiles entirely based on lamination.
It contains 16m PhantomTape X, 12 ElectroSkin electrodes and different textile connector types and tools for turning a garment into a heart rate sensor, muscle activity monitor, electrostimulator and more. The kit provides all the e-textile elements needed up to snap buttons for connections to your electronic module. The snap buttons can be replaced by magnetic/snap buttons or connectors of your choice.

Necessary textile workshop tools for handling lamination and buttons: Hot press or lamination machine (for starters, an iron works as well), textile button press & hole puncher.

INGREDIENTS:

12 ElectroSkin electrodes
16m PhantomTape X, 1m PhantomTape Light beta
Insulation patches and PhantomLink connector patches for buttons, PCBs and other connectors
PhantomLink for combining PhantomTape with ElectroSkin
Example PCBs with connection pads
Conductive snap buttons & tools
Supporting tools for lamination and pressing
Laminated reference sample for PhantomTape X
Laminated reference sample for ElectroSkin-PhantomTapeX- button
SOP documentation

Starter Kit orders include up to 1.5 hours of telephone support with an expert from Nanoleq who will help you with laminating and connecting PhantomTape and ElectroSkin.
